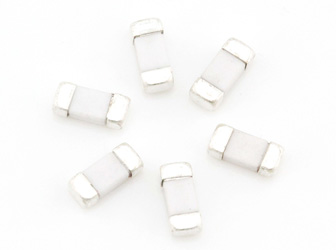

JFC2410-2120TS
集電通JFC2410-2120TS 抗浪涌容耐能力 單片陶瓷結構 鎳錫電鍍銀質保險絲及終端 極佳的溫度穩(wěn)定性 強大的電弧抑制特性 特性 無鉛材料符合 RoHS 規(guī)范 無鹵素器件
| Part NO. | Rated Current(A) | Max Voltage Rating(V) | Interrupting Rating | Nominal Cold Resistance(Ohms) | Nominal Melting I2t(A2sec) | Data Sheet |
|---|---|---|---|---|---|---|
| JFC2410-2200TS | 20.0 | 72V | 500A@72V | 0.0023 | 410 |
 |
| JFC2410-2250TS | 25.0 | 72V | 500A@72V | 0.0017 | 550 |
|
| JFC2410-2300TS | 30.0 | 72V | 500A@72V | 0.0012 | 900 |
|
| JFC2410-2150TS | 15.0 | 250V | 50A@250V | 0.0038 | 320.65 |
|
| JFC2410-2120TS | 12.0 | 250V | 50A@250V | 0.0061 | 260.46 |
|
| JFC2410-2100TS | 10.0 | 250V | 50A@250V | 0.0073 | 187.45 |
|
| JFC2410-1800TS | 8.00 | 250V | 50A@250V | 0.0088 | 137.34 |
|
| JFC2410-1700TS | 7.00 | 250V | 50A@250V | 0.0105 | 123.83 |
|
| JFC2410-1630TS | 6.30 | 250V | 50A@250V | 0.0115 | 95.32 |
|
| JFC2410-1600TS | 6.00 | 250V | 50A@250V | 0.0123 | 84.58 |
|
| JFC2410-1500TS | 5.00 | 250V | 50A@250V | 0.0136 | 53.72 |
|
| JFC2410-1400TS | 4.00 | 250V | 50A@250V | 0.0186 | 34.40 |
|
| JFC2410-1350TS | 3.5 | 250V | 50A@250V | 0.0224 | 26.53 |
|
| JFC2410-1300TS | 3.00 | 250V | 50A@250V | 0.0340 | 20.16 |
|
| JFC2410-1250TS | 2.50 | 250V | 50A@250V | 0.0450 | 15.0 |
|
| JFC2410-1200TS | 2.00 | 250V | 50A@250V | 0.0625 | 8.20 |
|
| JFC2410-1150TS | 1.50 | 250V | 50A@250V | 0.0930 | 3.65 |
|
| JFC2410-1100TS | 1.00 | 250V | 50A@250V | 0.2250 | 1.98 |
|
| JFC2410-0750TS | 0.75 | 250V | 50A@250V | 0.3600 | 0.904 |
|
| JFC2410-0500TS | 0.50 | 250V | 50A@250V | 0.7000 | 0.240 |
|
